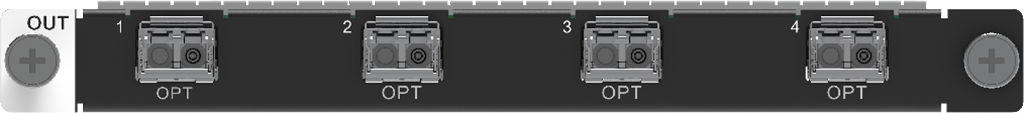

LU_4×OPT Sending Card

4x 10G OPT ports
This card can load up to 20,800,000 pixels (max. width: 16,384 pixels, max. height: 16,384 pixels)
• Independent, copy and backup modes are supported.
• SM and MM optical modules are both supported, with a transmission distance of up to 10 km and 300 m respectively.
• Supports 8-bit and 10-bit outputs.
• Supports 144Hz output.
• The optical module supports SFP+ encapsulation. The supported module specifications include the followings:
 − Multi-mode optical module: 10G SFP+ SR optical module
 − Single-mode optical module: 10G SFP+ LR optical module
Independent
Four OPT ports are all used for output and have the same loading capacity. The loading capacity of one port is equal to that of 8 Ethernet ports.
Copy
OPT 1 and OPT 2 are used for main output. OPT 3 copies the output on OPT 1, while OPT 4 copies the output on OPT 2.
Backup
OPT 1 and OPT 2 are used for main output. OPT 3 serves as the backup of OPT 1, while OPT 4 serves as the backup of OPT 2.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 39 W
Notes:
• Four 10G SFP+ LR optical modules are included with the card and are already installed into the OPT ports.
• When the screen is loaded by the LU_4xfiber sending card, the preset transition effect supports cut only.
• When the screen is loaded by the LU_4xfiber sending card, NovaLCT V5.4.4.6.CRM7401 is required for screen configurations.
