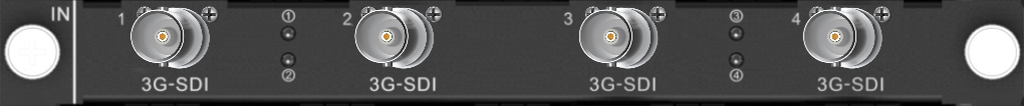

LU_4×3G SDI Input Card
Daughter Card
• 4x 3G-SDI
− Backward compatible with HD-SDI and SD-SDI
− Supports ST-424 (3G), ST-292 (HD) and SMPTE 259 SD.
− Each connector supports the maximum resolution of 1920×1080@60Hz.
− Supports 1080i/576i/480i de-interlacing processing
− Does not support input resolution and bit depth settings.
• Status LEDs:
− On: The input source is accessed normally.
− Off: No input source is accessed or the input source is abnormal.
Specifications:
• Weight: 550 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 12.6 W
