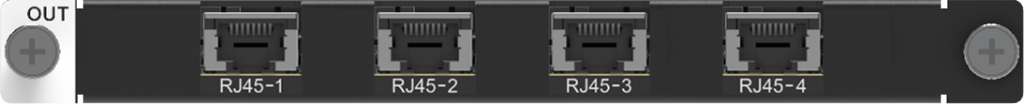

LU_4×RJ45 Video Output Card
Daughter Card
4x RJ45
CATE5 and above standard Ethernet cables are recommended and the sequence must use parallel.
• Single-link output:
− Four connectors are all available for output.
− Each connector supports the maximum resolution of 2048×1152@60Hz.
− Custom resolutions:
Max. width: 2560 pixels (2560×972@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
− Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
• Dual link output:
− Connectors 2 and 4 are available for output.
Connector 1 copies the output on connector 2, and connector 3 copies the output on connector 4.
− Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz.
− Custom resolutions:
Max. width: 4096 pixels (4096×1124@60Hz)
Max. height: 4096 pixels (1014×4096@60Hz)
− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
− Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
• Three output modes supported
− Color: The color is optimum, while the transmission distance is limited. (50 m)
− Balanced: The color is relatively lost, while the transmission distance is relatively increased. (70 m)
− Distance: The transmission distance is the longest, while the color is lost. (100m)
Specifications:
• Weight: 670 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 18 W
