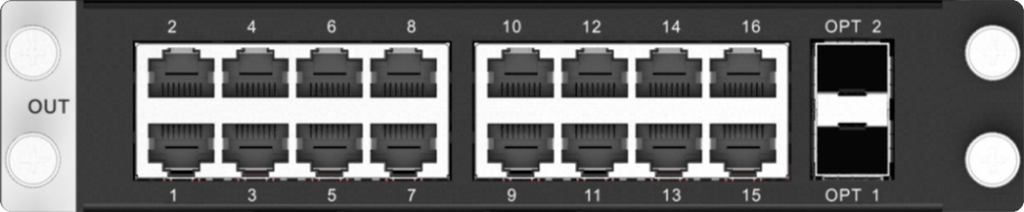

LU_16×RJ45+2×OPT Sending Card
Daughter Card
LED 4K sending card can load up to 10,400,000 pixels (max. width: 10,240 pixels, max. height: 10,240 pixels).
This card occupies two slots.
• 16x RJ45 Gigabit Ethernet outputs
− Bit depth: 8-bit
A single Ethernet port loads up to 650,000 pixels.
− Bit depth: 10-bit
A single Ethernet port loads up to 320,000 pixels.
− Backup between Ethernet ports
− Supports 144Hz output.
• 2x OPT outputs
− Support both SMF and MMF transmission.
− OPT 1 copies and outputs the data on Ethernet ports 1–8.
− OPT 2 copies and outputs the data on Ethernet ports 9–16.
− Supports 144Hz output.
Specifications:
• Weight: 600 g
• Dimensions: 193 mm × 247.12 mm × 41.25 mm
• Power consumption: 34.2 W
Note:
For the optical module connected to the OPT port, you need to order or purchase separately.
This card occupies two slots.
• 16x RJ45 Gigabit Ethernet outputs
− Bit depth: 8-bit
A single Ethernet port loads up to 650,000 pixels.
− Bit depth: 10-bit
A single Ethernet port loads up to 320,000 pixels.
− Backup between Ethernet ports
− Supports 144Hz output.
• 2x OPT outputs
− Support both SMF and MMF transmission.
− OPT 1 copies and outputs the data on Ethernet ports 1–8.
− OPT 2 copies and outputs the data on Ethernet ports 9–16.
− Supports 144Hz output.
Specifications:
• Weight: 600 g
• Dimensions: 193 mm × 247.12 mm × 41.25 mm
• Power consumption: 34.2 W
Note:
For the optical module connected to the OPT port, you need to order or purchase separately.
