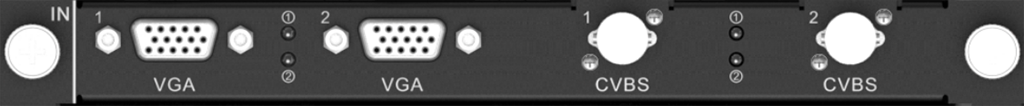

LU_2×CVBS+2×VGA Input Card
Daughter Card
• 2x VGA
− Each connector supports the maximum resolution of 1920×1200@60Hz.
− Does not support interlaced signal input.
• 2x CVBS
− Supports PAL and NTSC.
− Supports interlaced signal input.
• Status LEDs:
− On: The input source is accessed normally.
− Off: No input source is accessed or the input source is abnormal.
Specifications:
• Weight: 550 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 9.3 W
− Each connector supports the maximum resolution of 1920×1200@60Hz.
− Does not support interlaced signal input.
• 2x CVBS
− Supports PAL and NTSC.
− Supports interlaced signal input.
• Status LEDs:
− On: The input source is accessed normally.
− Off: No input source is accessed or the input source is abnormal.
Specifications:
• Weight: 550 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 9.3 W
