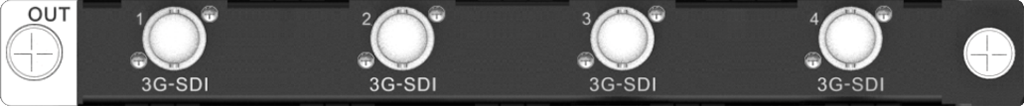

LU_4×3G SDI Output Card
Daughter Card
4x 3G-SDI
• Backward compatible with HD-SDI and SD-SDI output
• Each connector supports the maximum resolution of 1920×1080@60Hz.
• Supports 10-bit YCbCr 4:2:2 output.
• Supports Level A format only.
• The screen loaded by this card does not support the fade transition effect.
• Supports the following standard output resolutions:
− PAL: 720×576i@50Hz
− NTSC: 720×480i@59.94Hz
− 1920×1080i@50/59.94/60Hz
− 1280×720p@23.98/24/25/29.97/30/50/59.94/60Hz
− 1920×1080p@23.98/24/25/29.97/30/50/59.94/60Hz
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 24 W
