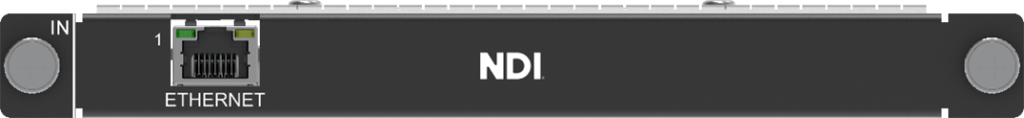

LU_1×NDI Input Card
Daughter Card
1x RJ45 Gigabit Ethernet input
• Supports 8-bit YUV4:2:2 or YUV4:2:0 input decoding.
• Single card decoding capability:
− 4x 2K×1K@60Hz
− 2x 4K×1K@60Hz
− 1x 4K×2K@60Hz
• Supports input source cropping.
• DHCP supported
• Supports video decoding in Full NDI format.
• Does not support standard and custom resolution settings for the input source.
Status LEDs:
• Green: Indicating the input source access status
− On: The input source is accessed normally.
− Off: No input source is accessed.
• Yellow: Indicating the input source status
− On: The input source is normal.
− Off: The input source has no signal or the input source is abnormal.
− Flashing: The connector is in communication.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 42 W
• Supports 8-bit YUV4:2:2 or YUV4:2:0 input decoding.
• Single card decoding capability:
− 4x 2K×1K@60Hz
− 2x 4K×1K@60Hz
− 1x 4K×2K@60Hz
• Supports input source cropping.
• DHCP supported
• Supports video decoding in Full NDI format.
• Does not support standard and custom resolution settings for the input source.
Status LEDs:
• Green: Indicating the input source access status
− On: The input source is accessed normally.
− Off: No input source is accessed.
• Yellow: Indicating the input source status
− On: The input source is normal.
− Off: The input source has no signal or the input source is abnormal.
− Flashing: The connector is in communication.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 42 W
