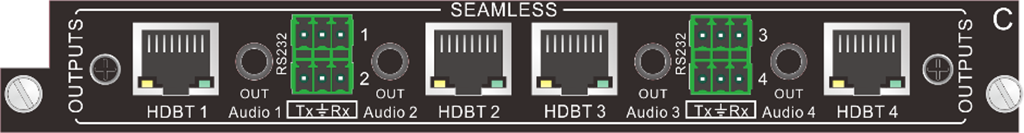

UMX_4×HDBaseT Output Card
Sub-Card
• Input card: 4x HDBT inputs, 4x Audio inputs
• Output card: 4x HDBT outputs, 4x Audio outputs
• For output cards, 1080P seamless switching is supported. (Default: 1080P@60Hz)
• Audio embedding/de-embedding supported
• The input audio is set to an embedded audio by default, and the output audio is set to a de-embedded audio.
• Remote passthrough via RS232 port and local communication is not supported.
• Transmit 1080P signals with the maximum transmission distance of 70 m.
• The HDBT card must be used with a remote transmitter/receiver together.
• HDBT port indicator status:
− Flashing (yellow): The device is powered on and the twisted-pair cable is not connected.
− The yellow light flashes and green light stays on: The twisted-pair cable is connected.
− Each HDBT port includes 1x audio external audio and 1x RS232 control signal.
− Use the RS232 port with a remote transmitter/receiver together to realize serial bidirectional communication.
− Adjust the output resolution of an output card via commands and up to 22 resolutions are supported, including 720×480P@60Hz, 720×576P@50Hz, 1280×720P@60Hz, 1280×720P@50Hz, 1280×720P@30Hz, 1280×720P@25Hz, 1920×1080P@60Hz, 1920×1080P@50Hz, 1920×1080P@30Hz, 1920×1080P@25Hz, 640×480P@60Hz, 800×600P@60Hz, 1024×768P@60Hz, 1280×1024P@60Hz, 1360×768P@60Hz, 1366×768P@60Hz, 1400×1050P@60Hz, 1600×1200P@60Hz, 1440×900P@60Hz, 1680×1050P@60Hz, 1920×1200P@60Hz and 1600×900P@60Hz.
• Output card: 4x HDBT outputs, 4x Audio outputs
• For output cards, 1080P seamless switching is supported. (Default: 1080P@60Hz)
• Audio embedding/de-embedding supported
• The input audio is set to an embedded audio by default, and the output audio is set to a de-embedded audio.
• Remote passthrough via RS232 port and local communication is not supported.
• Transmit 1080P signals with the maximum transmission distance of 70 m.
• The HDBT card must be used with a remote transmitter/receiver together.
• HDBT port indicator status:
− Flashing (yellow): The device is powered on and the twisted-pair cable is not connected.
− The yellow light flashes and green light stays on: The twisted-pair cable is connected.
− Each HDBT port includes 1x audio external audio and 1x RS232 control signal.
− Use the RS232 port with a remote transmitter/receiver together to realize serial bidirectional communication.
− Adjust the output resolution of an output card via commands and up to 22 resolutions are supported, including 720×480P@60Hz, 720×576P@50Hz, 1280×720P@60Hz, 1280×720P@50Hz, 1280×720P@30Hz, 1280×720P@25Hz, 1920×1080P@60Hz, 1920×1080P@50Hz, 1920×1080P@30Hz, 1920×1080P@25Hz, 640×480P@60Hz, 800×600P@60Hz, 1024×768P@60Hz, 1280×1024P@60Hz, 1360×768P@60Hz, 1366×768P@60Hz, 1400×1050P@60Hz, 1600×1200P@60Hz, 1440×900P@60Hz, 1680×1050P@60Hz, 1920×1200P@60Hz and 1600×900P@60Hz.
