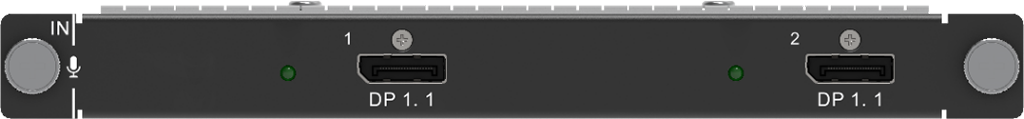

LU_2×DP1.1 Input Card
Daughter Card
2x DP1.1
• Each connector supports the maximum resolution of 3840×1080@60Hz or 3840×2160@30Hz and the minimum resolution of 800×600@59.94Hz.
• Custom resolutions:
− Max. width: 3840 pixels (3840×1202@60Hz)
− Max. height: 3840 pixels (1092×3840@60Hz)
• Supports 8-bit and 10-bit inputs.
• HDCP 1.3 compliant.
• Supports accompanied audio.
• Supports 144Hz input.
• Does not support interlaced signal input.
Status LEDs:
• On: The input source is accessed normally.
• Off: No input source is accessed or the input source is abnormal.
Specifications:
• Weight: 550 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 11.5 W
