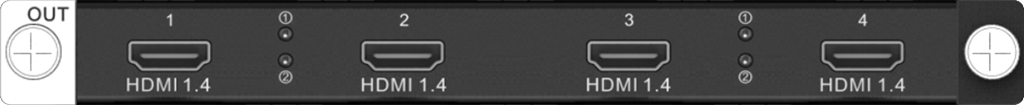

LU_4×HDMI Output Card

4x HDMI 1.4
Support for single output, dual link output and 144Hz output
• Single link output:
 − Four connectors are all available for output.
 − Each connector supports the maximum resolution of 2048×1152@60Hz.
 − Custom resolutions:
Max. width: 2560 pixels (2560×972@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
 − Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
 − Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
• Dual link output:
 − Connectors 2 and 4 are available for output.
Connector 1 copies the output on connector 2, and connector 3 copies the output on connector 4.
 − Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz.
 − Custom resolutions:
Max. width: 4096 pixels (4096×1124@60Hz)
Max. height: 4096 pixels (1014×4096@60Hz)
 − Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
 − Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
Status LEDs:
• On: The output connector is connected normally.
• Off: The output connector is not connected.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 22.1 W
