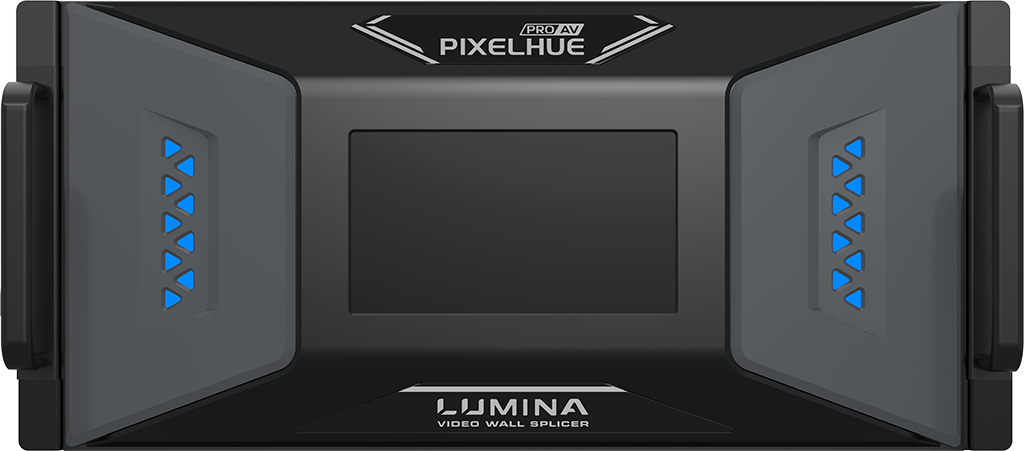

Lumina 5U
Professional Splicing Server 5U Host
Modular and plug-in design, free combination at your will
• Three kinds of LED 4K sending cards
− LU_20xRJ45 sending card loads up to 13,000,000 pixels.
− LU_16xRJ45+2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports.
− LU _4xfiber sending card loads up to 20,800,000 pixels and supports three working modes, including independent, copy and backup.
− The LU_4xfiber sending card cannot be used together with the LU_20xRJ45 sending card or LU_16xRJ45+2xfiber sending card to load the same screen.
• Multi-capacity input on a single card slot
− 4x 2K×1K@60Hz
− 2x 4K×1K@60Hz
− 2x 4K×2K@60Hz
− 1x 4K×2K@60Hz
• Simple screen configuration using a single card and connector
• Online status monitoring of all input and output cards
• Hot-swappable input and output cards
• LU_2xRJ45 IP input card supports up to 512 IP camera inputs and input mosaic.
• Auto decryption of HDCP-encrypted sources
• Decimal frame rates supported
• HDR10 and HLG processing
Multi-screen management for centralized control
• Each screen can have its output resolution.
• Output mosaic
Adopts the frame synchronization technology, ensuring all the output connectors output the image synchronously. The image is complete and played smoothly, without any stuck, frame loss, tearing or piecing.
• Irregular screen configuration
Supports irregular rectangle mosaic without any limitations.
• Input source grouping management
• Eye saver mode
Display the image in a warmer but less bright way to relieve eye strain.
• Various display modes
Four built-in image quality adjustment modes are supported, including standard mode, document mode, conference mode and video mode. Each mode supports eye comfort mode, which can reduce blue light harm, ensure display effect and enhance viewing experience.
Diverse display possibilities for flexible configuration
• Multi-layer display
− A single card supports 16x 2K layers, 8x DL layers or 4x 4K layers.
− All layers support cross-connector output and the layer quantity is not reduced for cross-connector output.
• High-definition scrolling text
Customize the scrolling text content, such as slogans or notification messages, and set the text style, scrolling direction and speed.
• Up to 2,000 presets
Fade effect and seamless switching supported, less than 60ms preset switching duration
• Scheduled playback of preset playlist
Set whether to add the presets to playlist, which is ideal for monitoring, exhibitions, presentations, and other applications.
• OSD settings on a single screen and adjustable OSD transparency
• BKG settings
− BKG images do not occupy the layer resources.
− Max width: 15K, max height: 8K
• Channel logo management
Set a text or image logo for identifying the input source.
• Input source cropping and renaming after cropping
Crop any input source image and form a new input source after cropping
• HDR and 10-bit video processing, allowing for a more exquisite and clear image
• Color adjustment
Output connector color and screen color adjustable, including the brightness, contrast, saturation, hue and Gamma
• XR scenario control
• 3D function
Work with the 3D emitter – EMT200 to enjoy the 3D visual effect.
• Low latency
Reduce the latency from the input source to the receiving card to as low as 1 frame
Web-page control, easy, friendly and convenient
• Web control
Real-time response and 1000M/100M self-adaptive network control, allowing for multi-user collaboration
• Monitoring of inputs and outputs on Web page
• Firmware update on Web page
• Control the device via Visual Integrated Management Platform and Visual Intelligent Control Platform
Status monitoring and redundant power supply for better stability and reliability
• Self-test for fault detection
• Auto monitoring and alarms
Supports hardware monitoring, such as fan rotation speed, module temperature and voltage, running status, and sends fault alarms if necessary.
• Supports an optional power supply for higher system reliability.
• Backup design
− Backup between devices
− Backup between input sources
− Backup between LED 4K sending cards
• Three kinds of LED 4K sending cards
− LU_20xRJ45 sending card loads up to 13,000,000 pixels.
− LU_16xRJ45+2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports.
− LU _4xfiber sending card loads up to 20,800,000 pixels and supports three working modes, including independent, copy and backup.
− The LU_4xfiber sending card cannot be used together with the LU_20xRJ45 sending card or LU_16xRJ45+2xfiber sending card to load the same screen.
• Multi-capacity input on a single card slot
− 4x 2K×1K@60Hz
− 2x 4K×1K@60Hz
− 2x 4K×2K@60Hz
− 1x 4K×2K@60Hz
• Simple screen configuration using a single card and connector
• Online status monitoring of all input and output cards
• Hot-swappable input and output cards
• LU_2xRJ45 IP input card supports up to 512 IP camera inputs and input mosaic.
• Auto decryption of HDCP-encrypted sources
• Decimal frame rates supported
• HDR10 and HLG processing
Multi-screen management for centralized control
• Each screen can have its output resolution.
• Output mosaic
Adopts the frame synchronization technology, ensuring all the output connectors output the image synchronously. The image is complete and played smoothly, without any stuck, frame loss, tearing or piecing.
• Irregular screen configuration
Supports irregular rectangle mosaic without any limitations.
• Input source grouping management
• Eye saver mode
Display the image in a warmer but less bright way to relieve eye strain.
• Various display modes
Four built-in image quality adjustment modes are supported, including standard mode, document mode, conference mode and video mode. Each mode supports eye comfort mode, which can reduce blue light harm, ensure display effect and enhance viewing experience.
Diverse display possibilities for flexible configuration
• Multi-layer display
− A single card supports 16x 2K layers, 8x DL layers or 4x 4K layers.
− All layers support cross-connector output and the layer quantity is not reduced for cross-connector output.
• High-definition scrolling text
Customize the scrolling text content, such as slogans or notification messages, and set the text style, scrolling direction and speed.
• Up to 2,000 presets
Fade effect and seamless switching supported, less than 60ms preset switching duration
• Scheduled playback of preset playlist
Set whether to add the presets to playlist, which is ideal for monitoring, exhibitions, presentations, and other applications.
• OSD settings on a single screen and adjustable OSD transparency
• BKG settings
− BKG images do not occupy the layer resources.
− Max width: 15K, max height: 8K
• Channel logo management
Set a text or image logo for identifying the input source.
• Input source cropping and renaming after cropping
Crop any input source image and form a new input source after cropping
• HDR and 10-bit video processing, allowing for a more exquisite and clear image
• Color adjustment
Output connector color and screen color adjustable, including the brightness, contrast, saturation, hue and Gamma
• XR scenario control
• 3D function
Work with the 3D emitter – EMT200 to enjoy the 3D visual effect.
• Low latency
Reduce the latency from the input source to the receiving card to as low as 1 frame
Web-page control, easy, friendly and convenient
• Web control
Real-time response and 1000M/100M self-adaptive network control, allowing for multi-user collaboration
• Monitoring of inputs and outputs on Web page
• Firmware update on Web page
• Control the device via Visual Integrated Management Platform and Visual Intelligent Control Platform
Status monitoring and redundant power supply for better stability and reliability
• Self-test for fault detection
• Auto monitoring and alarms
Supports hardware monitoring, such as fan rotation speed, module temperature and voltage, running status, and sends fault alarms if necessary.
• Supports an optional power supply for higher system reliability.
• Backup design
− Backup between devices
− Backup between input sources
− Backup between LED 4K sending cards
