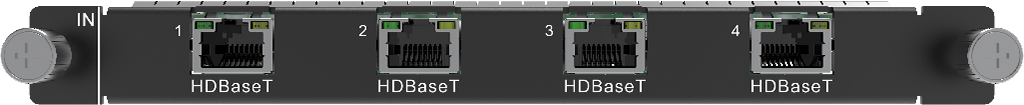

LU_4×HDBaseT Input Card

4x RJ45 Gigabit Ethernet ports
Support for single link and dual link input modes, and accompanied audio
• Single link input:
 − Four connectors are all available for input.
 − Each connector supports the maximum resolution of 1920×1080@60Hz and the minimum resolution of 800×600@59.94Hz.
 − Custom resolution:
Max. width: 2560 pixels (2560×983@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
 − HDCP 1.4 compliant
• Dual link input:
 − Connector 2 and 4 are available for input.
 − Each connector supports the maximum resolution of 3840×2160@30Hz and the minimum resolution of 800×600@59.94Hz.
 − Custom resolution:
Max. width: 3840 pixels (3840×1202@60Hz)
Max. height: 3840 pixels (1092×3840@60Hz)
• HDCP 1.4 compliant
Status LEDs:
• Green: Indicating the input source access status
 − On: The input source is accessed normally.
 − Off: No input source is accessed.
• Yellow: Indicating the input source status
 − On: The input source is normal.
 − Off: The input source has no signal or the input source is abnormal.
 − Flashing: The connector is in communication.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 39 W
