LU_1×12G SDI Output Card
Daughter Card

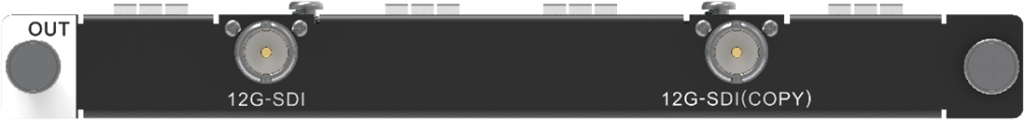

1x 12G-SDI and 1x 12G-SDI (COPY)
• The 12G-SDI connector is used for primary output, and the other one copies the output on the 12G-SDI.
• Backward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
• Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 SD.
• Each connector supports the maximum resolution of 4096×2160@60Hz.
• Supports 10-bit YCbCr 4:2:2 output.
• Custom output resolution settings are not allowed.
• Supports Level A format only.
• The screen loaded by this card does not support the fade transition effect.
Specifications:
• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 20 W
