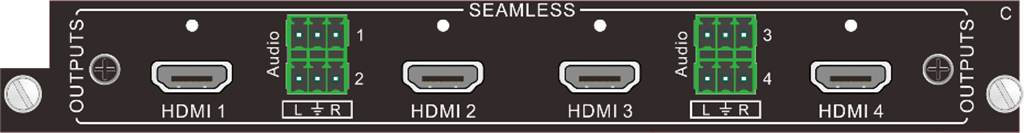

UMX_4×HDMI1.4 Output Card
Sub-Card
• Input card: 4x HDMI inputs, 4x Audio inputs
• Output card: 4x HDMI outputs, 4x Audio outputs
• HDMI signals supported, compatible with DVI-D
• Max resolution: 4096×2160@30Hz
• Supports stereo audio embedding and de-embedding.
• HDMI 1.4 standard supported
• For input cards, character overlapping is supported. Change the character-related properties through commands. For details, please refer to the command table.
• For output cards, up to 6 resolutions are supported for adjustment, including 1024×768P@60Hz, 1360×768P@60Hz, 1280×720P@60Hz, 1920×1080P@60Hz, 3840×2160P@30Hz (default) and 4096 x 2160P@30Hz.
• When the command selects an HDMI embedded audio/external analog audio as an input audio, the HDMI embedded audio is used by default.
• Output card: 4x HDMI outputs, 4x Audio outputs
• HDMI signals supported, compatible with DVI-D
• Max resolution: 4096×2160@30Hz
• Supports stereo audio embedding and de-embedding.
• HDMI 1.4 standard supported
• For input cards, character overlapping is supported. Change the character-related properties through commands. For details, please refer to the command table.
• For output cards, up to 6 resolutions are supported for adjustment, including 1024×768P@60Hz, 1360×768P@60Hz, 1280×720P@60Hz, 1920×1080P@60Hz, 3840×2160P@30Hz (default) and 4096 x 2160P@30Hz.
• When the command selects an HDMI embedded audio/external analog audio as an input audio, the HDMI embedded audio is used by default.
